Automatic Wire Coiling Machine Transformer Coil Winding Machine
Introduction of Automatic Coil Winding Machine ZPX600
The ZPX600 is a professional wire coil winder designed for transformer coils and similar applications. This versatile machine handles both copper and aluminum wire with precision. Its servo motor-driven wire guide ensures accurate movement and automatic wire laying during operation. Equipped with PLC and HMI controls, the ZPX600 offers high automation and user-friendly operation, featuring slow starting and smooth running capabilities.
Main Features
- Slow starting mechanism
- Smooth running operation
- Strong pulling force
- High reliability and durability
- Precision accuracy
- Full-featured functionality
Technical Specifications
| Parameter | Value |
| Center Height | 900mm |
| Square Shaft Size | 40x40x900mm |
| Winding Width | 600mm max. |
| Servo Motor Power | 0.75kw |
| Winding Speed | 0 ~ 200 rpm |
| Max. Flat Wire Size | 5X12mm |
| Round Wire Capacity | Ø0.3 ~ 5.0mm |
| Finished Coil OD. | Ø600mm max |
| Counting Mode | 5-digit counting |
| Counting Turn Range | 0 - 9999.9 |

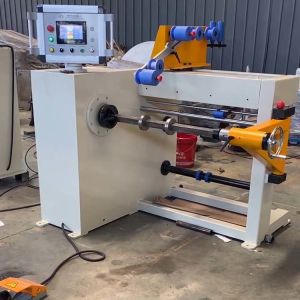

Fig 1: Automatic coil winding machine ZPX600's front view
Fig 2: Automatic coil winding machine ZPX600's wire guide
